HPCC 300 / 500

HPCC 300/500 High pressure countercurrent extraction/fractionation.

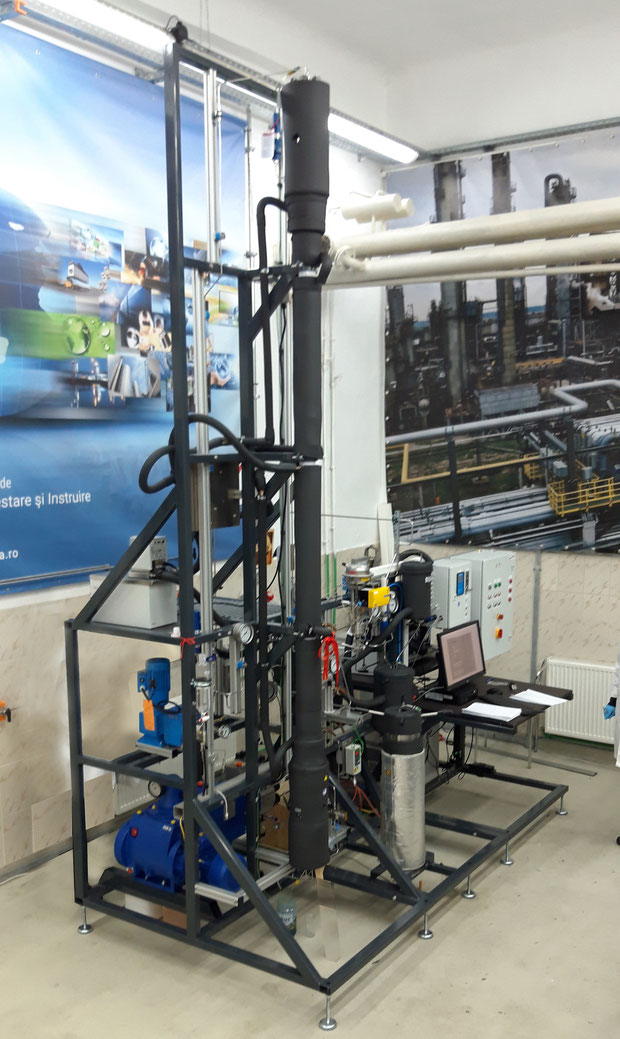

Description: The high pressure counter current column HP CC300/500 is designed for extraction or fractionation of liquid feedstocks. View cells at the top and the bottom of the column allow for observation of the flow inside the column and the liquid level. The bottom valve is controlled by an optoelectronic level controlled based on the change in refractive index. The column is operated in a closed solvent (CO2) cycle. Available internal diameter are in the range of 30 to 90 mm. Available heights are in the range of 2 to 12 m.



Reference: A. Bejarano, P.C. Simoes, J.M. del Valle: Fractionation technologies for liquid mixtures using dense carbondioxide, J. of Supercritical Fluids 107 (2016) 321–348.
